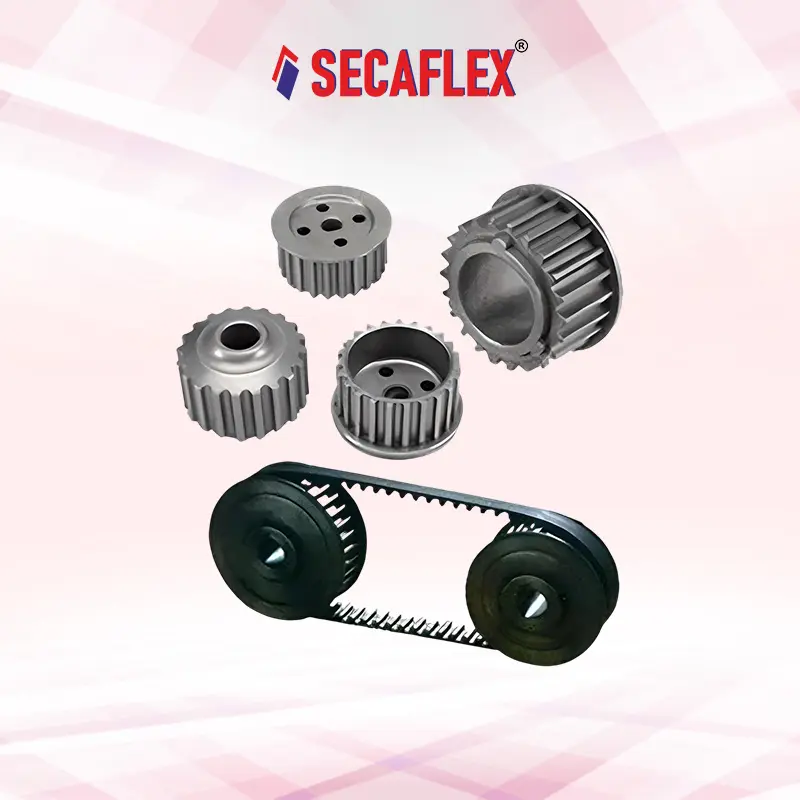

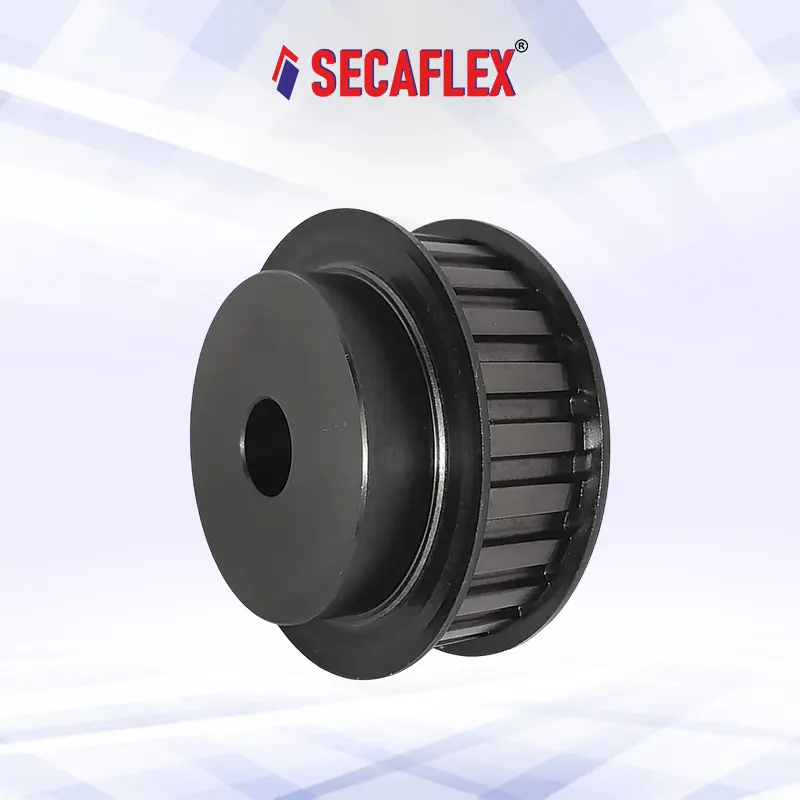

The timing pulley is an integral part of the mechanical system that transfers the rotational motion between the pulleys while maintaining a specific time and relationship between them. These pulleys are designed to work in conjunction with the timing belt, with it’s teeth that mesh perfectly with the grooves of the pulley.
The metric timing pulleys manufactured by the renowned company Secaflex is known for their high performance. Our customized solutions meet the specific needs of the clients. These pulleys are made with high-grade steel which enables them to withstand the extreme temperature of industries.
It is a versatile tool whether you want to integrate it into the manufacturing lines, automation process, or other specialized machinery. The cutting-edge design principle of the htd timing pulley also reflects the dedication of the Secaflex company, which makes them the best time pulley manufacturers in India.
- High Torque Capacity
- Flexible Operations
- Reduced Maintenance
- Customized Options
- Hassle-free Operations
- CNC (Computer numerical control) machine relies on the timing pulley to control the movement of the cutting tools.
- Packing industries to maintain motion
- Coordinating the robotics arms and other components, enabling high-precision tasks.
- Rotary motions in the treadmills from the center motor to the drive pulley.
- 3D printers for the precise movements of the components.
The pulley’s robust build helps in maintaining stability and performance across various conditions. Our timing belt pulleys are not expensive and we keep the price factor in mind while manufacturing them. Our team produces a versatile range of timing belts ranging from the V-Pulley and Flat Drive pulleys making us the most reliable time pulley suppliers in India.
So when you are choosing the gt2 timing pulley from our company, you are selecting the product that is backed by extensive research and development, guaranteeing that each of the pulleys offers reliability.
Our t5 timing pulley stands out not just for strength but also for exemplifying the standard craftsmanship of the company. With our high- range of standard timing pulleys, you can be sure that you are one of the most trusted names in precision components.
| TYPE | bw | hg | y+1.5° | rb | rt | 2k |
| MXL | 0.84 ± 0.05 | 0.69 | 20 | 0.35 | 0.13 | 0.508 |
| XXL | 1.14 ± 0.05 | 0.84 | 25 | 0.35 | 0.30 | 0.508 |
| XL | 1.32 ± 0.05 | 1.65 | 25 | 0.41 | 0.64 | 0.508 |
| L | 3.05 ± 0.01 | 2.67 | 20 | 1.19 | 1.17 | 0.762 |
| H | 4.19 ± 0.13 | 3.05 | 20 | 1.60 | 1.6 | 1.372 |
| XH | 7.90 ± 0.15 | 7.14 | 20 | 1.98 | 2.39 | 2.794 |
| XXH | 12.17 ± 0.18 | 10.31 | 20 | 3.96 | 3.18 | 3.048 |
| TYPE | Pitch | hg Tooth height | Root circle radius | Groove width | Top circle radius | Angle |
| 3M | 3 | 1.28 | 0.91 | 1.90 | 0.3 | -14° |
| SM | 5 | 2.16 | 1.56 | 3.25 | 0.48 | -14° |
| 8M | 8 | 3.54 | 2.57 | 5.35 | 0.8 | -14° |
| 14 | 14 | 6.20 | 4.65 | 9.80 | 1.4 | -14° |
| TYPE | SE br<20 | N br<20 | SE hg<20 | N hg<20 | y Grade | rt | rb | 2k | ||||
| T2.5 | 1.75 | +0.050 | 1.83 | +0.050 | 0.75 | +0.050 | 1 | 25 | 0.2 | 0.3 | +0.050 | 0.6 |
| TS | 2.96 | +0.050 | 3.32 | +0.050 | 1.25 | +0.050 | 1.95 | 25 | 0.4 | 0.6 | +0.050 | 0.85 |
| T10 | 6.02 | +0.10 | 6.57 | +0.10 | 2.6 | +0.10 | 3.4 | 25 | 0.6 | 0.8 | +0.10 | 1.85 |
| T20 | 11.65 | +0.150 | 12.6 | +0.150 | 5.2 | +0.130 | 6 | 25 | 0.8 | 1.2 | +0.10 | 2.83 |
| TYPE | Pitch | Tooth height | Root circle radius | Groove width | 2k |
| S2M | 2 | 0.76 | 1.325 | 1.30 | 0.508 |
| S3M | 3 | 1.11 | 1.975 | 1.95 | 0.762 |
| S4.5M | 4.5 | 1.59 | 2.98 | 2.93 | 0.762 |
| S5M | 5 | 1.89 | 3.275 | 3.25 | 0.96 |
| S8M | 8 | 2.83 | 5.30 | 5.20 | 1.372 |
| S14M | 14 | 4.95 | 9.28 | 9.10 | 2.794 |
